Specification
| Motor |
ADM 8020 |
| Propeller |
30 x 11 inch |
| ESC |
80 A |
| KV Rating |
100 KV |
| Battery |
12S - 14S |
| Thrust per Rotor |
5 – 6.5 kg |
| Takeoff Weight of Quadrotor |
25 kg |
Price Details

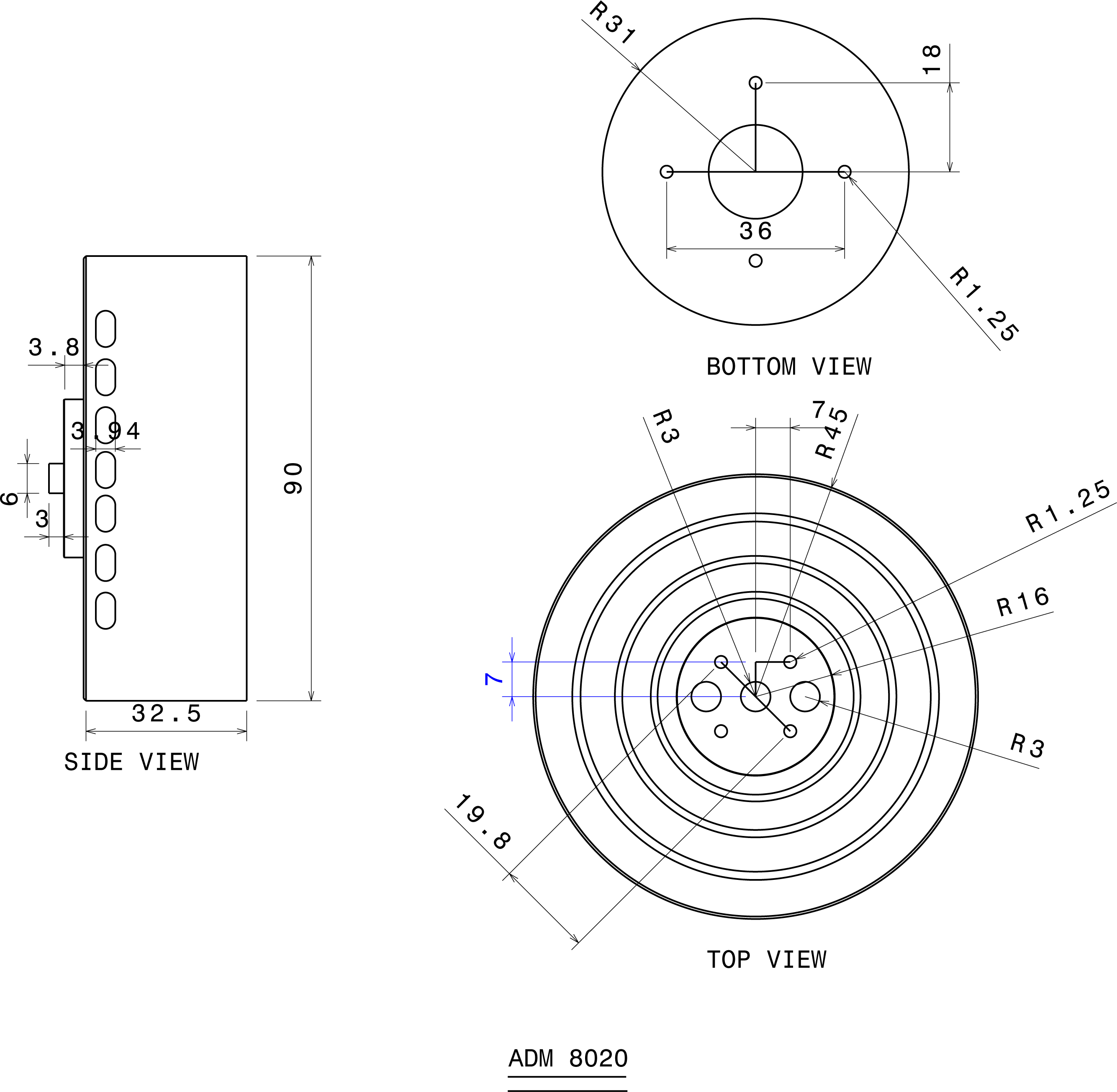

CAD Drawing
| Propeller | Voltage (V) | Throttle (pwm) | Current (A) | Power (W) | Thrust (g) | Speed (rpm) | Efficiency (g/W) | Temp (°C) |
| 30 inch | 48.25 | 1400 | 4.6 | 221 | 2378 | 1324 | 10.76 | 34 |
| 48.01 | 1450 | 5.2 | 249 | 2762 | 1520 | 11.09 |
| 47.90 | 1500 | 10.4 | 498 | 4367 | 1878 | 8.76 |
| 47.60 | 1550 | 11.9 | 566 | 5008 | 2078 | 8.84 |
| 47.20 | 1600 | 12.9 | 611 | 5290 | 2168 | 8.65 |
| 47.00 | 1650 | 18.2 | 855 | 6900 | 2272 | 8.07 |
| 46.90 | 1700 | 22.7 | 1060 | 7045 | 2315 | 6.64 |
| 46.70 | 1750 | 28.6 | 1335 | 7854 | 2595 | 5.88 |
| 46.30 | 1800 | 36.2 | 1676 | 8273 | 2725 | 4.93 |
| 46.10 | 1850 | 44.5 | 2051 | 8952 | 2935 | 4.36 |
| 45.90 | 1900 | 49.6 | 2276 | 9054 | 2025 | 2.97 |
