Specification
| Motor |
ADM 6015 |
| Propeller |
24 x 8 inch |
| ESC |
80 A |
| KV Rating |
150 KV |
| Battery |
12S |
| Thrust per Rotor |
3.5 – 4.5 kg |
| Takeoff Weight of Quadrotor |
21 - 25 kg |
Price Details

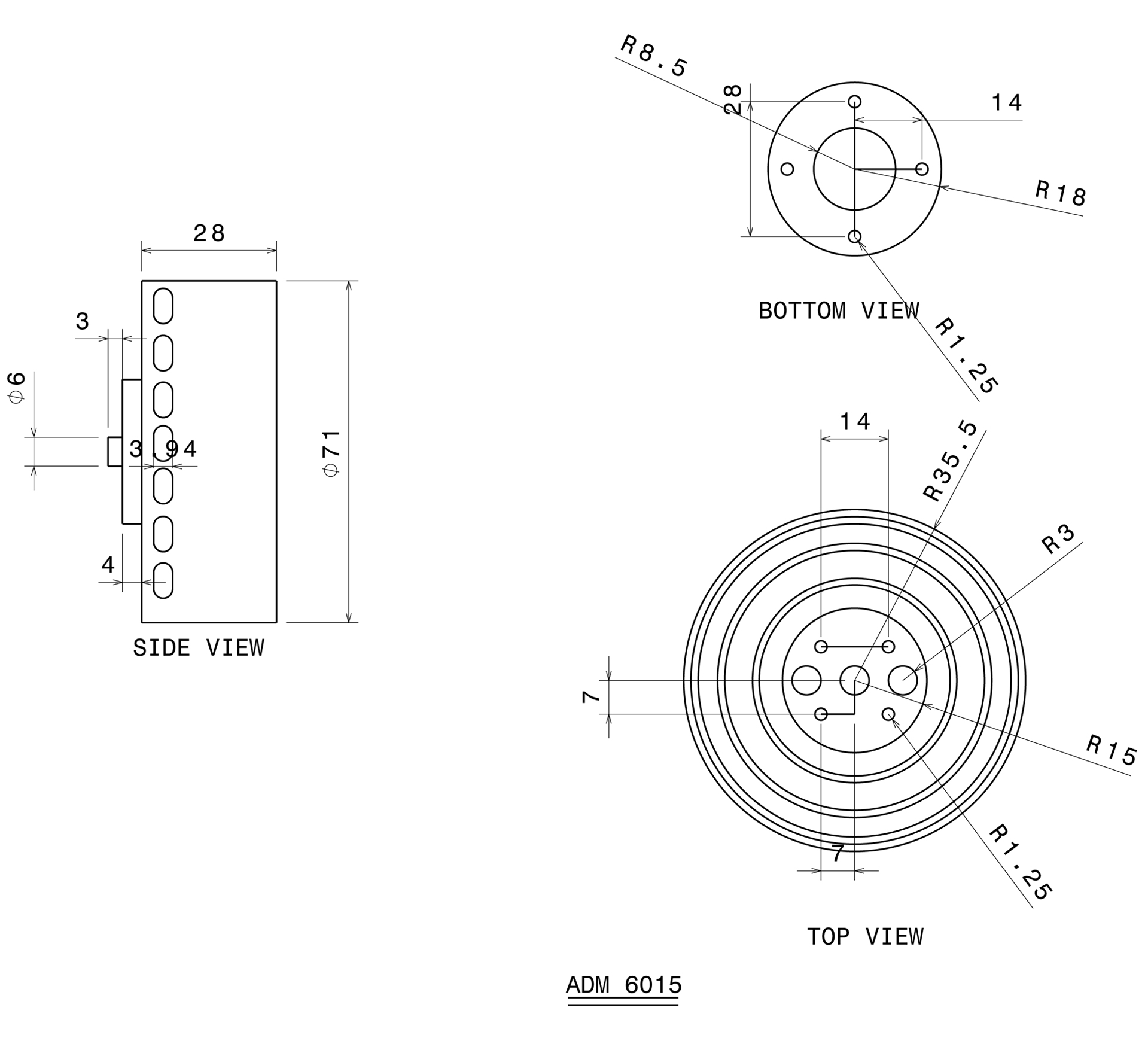

CAD Drawing
| Propeller |
Voltage (V) |
Throttle (pwm) |
Current (A) |
Power (W) |
Thrust (g) |
Speed (rpm) |
Efficiency (g/W) |
Temp (°C) |
| 24 inch |
47.57 |
1400 |
4.9 |
233.0 |
2398 |
2409 |
10.29 |
32 |
| 47.46 |
1450 |
6.5 |
308.4 |
2758 |
2520 |
9.07 |
| 47.28 |
1500 |
9.9 |
468.07 |
3964 |
3058 |
8.512 |
| 47.04 |
1550 |
13.0 |
611.5 |
4100 |
3428 |
6.710 |
| 46.55 |
1600 |
16.9 |
786.6 |
5950 |
3770 |
7.56 |
| 46.20 |
1650 |
22.7 |
1048.0 |
6003 |
4063 |
5.72 |
| 45.88 |
1700 |
26.2 |
1202.0 |
7150 |
4208 |
5.94 |
| 45.55 |
1750 |
33.5 |
1525.0 |
7430 |
4631 |
4.87 |
| 45.17 |
1800 |
37.0 |
1671.0 |
8750 |
4766 |
5.23 |
| 44.90 |
1850 |
40.0 |
1796.0 |
9420 |
4866 |
5.24 |
| 44.74 |
1900 |
48.6 |
2174.0 |
10203 |
5113 |
4.69 |
